Sparse Grids for More General Objects
More general objects can be interpolated and integrated via SparseGridsKit.jl
. The SparseGridsKit supports objects for which addition is defined. For example, we can could consider ApproxFun objects or even Python objects provided they support addition.
Example: ApproxFun.jl
One Dimensional Functions
We can consider interpolation of Fun
objects. First a parametric Fun
object can be evaluated at sparse grid points.
using SparseGridsKit, ApproxFun, Plots, LaTeXStrings
n, k = 1, 1
mi_set = create_smolyak_miset(n, k)
sg = create_sparsegrid(mi_set)
f = y-> Fun(Taylor(),[y,2,3])
f_on_grid = [f(x[1]) for x in get_grid_points(sg)]
3-element Vector{ApproxFunBase.Fun{ApproxFunFourier.Taylor{ApproxFunFourier.Circle{Float64, Float64, ComplexF64}, ComplexF64}, Float64, Vector{Float64}}}:
Fun(Taylor(🕒), [1.0, 2.0, 3.0])
Fun(Taylor(🕒), [0.0, 2.0, 3.0])
Fun(Taylor(🕒), [-1.0, 2.0, 3.0])
The Fun
objects can then be interpolated using the interpolate_on_sparsegrid
function. The interpolated Fun
objects are plotted below.
target_points = [[x] for x in -1.0:0.2:1.0]
interpolation_result = interpolate_on_sparsegrid(sg, f_on_grid, target_points)
plot(interpolation_result,
xlims = (-2,2),
)
A challenge for some non-vector objects is intermediate scalar multiplications introduces additional allocations.
@time interpolate_on_sparsegrid(sg, f_on_grid, target_points)
11-element Vector{ApproxFunBase.Fun{ApproxFunFourier.Taylor{ApproxFunFourier.Circle{Float64, Float64, ComplexF64}, ComplexF64}, Float64, Vector{Float64}}}:
Fun(Taylor(🕒), [-1.0, 2.0, 3.0])
Fun(Taylor(🕒), [-0.8, 2.0, 3.0])
Fun(Taylor(🕒), [-0.6, 2.0, 3.0])
Fun(Taylor(🕒), [-0.4, 2.0, 3.0])
Fun(Taylor(🕒), [-0.2, 2.0, 3.0])
Fun(Taylor(🕒), [0.0, 2.0, 3.0])
Fun(Taylor(🕒), [0.2, 2.0, 3.0])
Fun(Taylor(🕒), [0.4, 2.0, 3.0])
Fun(Taylor(🕒), [0.6, 2.0, 3.0])
Fun(Taylor(🕒), [0.8, 2.0, 3.0])
Fun(Taylor(🕒), [1.0, 2.0, 3.0])
Integration is also possible using the sparse grid formulation.
expectedvalue = integrate_on_sparsegrid(sg,f_on_grid)
Fun(Taylor(🕒), [0.0, 2.0, 3.0])
Two dimensional Elliptic PDE
The ApproxFun
package offers a fast way to solve a model elliptic PDE. Given that the Fun
objects can be used naturally within the SparseGridsKit.jl
, we can consider computing an approximation to the solution of a parameteric elliptic PDE.
This is set up on a two dimensional spatial domain $D=[-1,1]^2$.
d = ChebyshevInterval()^2
(-1.0 .. 1.0 (Chebyshev)) × (-1.0 .. 1.0 (Chebyshev))
A parametric forcing function is defined with a parameter domain $\Gamma=[-1,1]^2$.
x,y = Fun(d)
# Forcing is parametric
f = z -> ProductFun((x,y)->exp.(-(1.01+z[1])*(x+0.3)^2-2(y-z[2])^2))
#7 (generic function with 1 method)
The forced elliptic PDE
\[-\nabla u(x,z) = f(x,z) \text{ for all } x \in D, u(x,z) = 0 \text{ for all } x \in \partial D\]
is easily solved pointwise for any parameter $z \in \Gamma$.
A = [Dirichlet(d); -Laplacian()]
# Sln is parametric
u = z -> ProductFun(\(A, [zeros(∂(d)); f(z)]; tolerance=1E-6),d)
z = [0, 0]
uz = u(z)
plot(uz)
plot!(xlabel=L"x_1",
ylabel=L"x_2",
zlabel=L"u(x,z)")

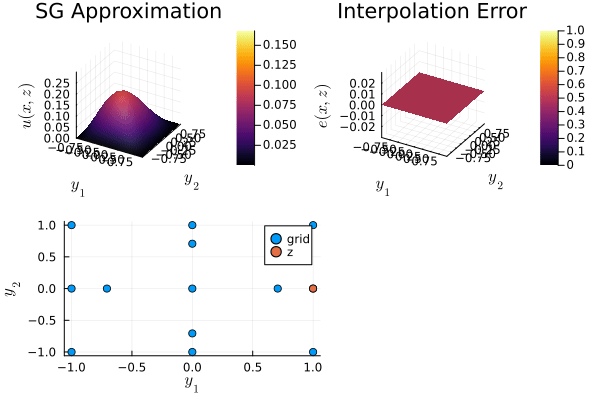

A sparse grid approximation can be constructed. The pointwise solutions on the sparse grid can be interpolated to give an approximation at any point in the domain. The animation below illustrates the changing sparse grid approximation and the approximation error for parameters on the circle $\Vert x \Vert_2 = 1$.
n, k = 2,2
mi_set = create_smolyak_miset(n, k)
sg = create_sparsegrid(mi_set)
f_on_grid = [u(z) for z in get_grid_points(sg)]
nsteps = 100
points = get_grid_points(sg)
x = [p[1] for p in points]
y = [p[2] for p in points]
@gif for i in range(0, stop = 2π, length = nsteps)
z = [cos(i),sin(i)]
interpolation_result = interpolate_on_sparsegrid(sg, f_on_grid, [z])
p1 = plot(interpolation_result[1])
plot!(zlims!(0,0.3),title="SG Approximation")
plot!(xlabel=L"x_1",
ylabel=L"x_2",
zlabel=L"u(x,z)")
p2 = plot(interpolation_result[1]-u(z))
plot!(zlims!(-3e-2,3e-2),title="Interpolation Error")
plot!(xlabel=L"x_1",
ylabel=L"x_2",
zlabel=L"e(x,z)")
p3 = scatter(x,y,label="grid")
scatter!(p3, [z[1]],[z[2]],label="z")
plot(p1, p2, p3, layout=[2,2])
plot!(xlabel=L"y_1",
ylabel=L"y_2")
end

The sparse grid has been constructed using Clenshaw–Curtis points. The quadrature rules can be applied assuming an underlying weight function $\rho(y)=0.5^2$. If this is interpreted as a probabiliy then integration gives the expected value of the PDE solution.
expectedvalue = ProductFun(integrate_on_sparsegrid(sg,f_on_grid),d)
plot(expectedvalue)
plot!(title="Approximation of Expected Value",
xlabel=L"x_1",
ylabel=L"x_2",
zlabel=L"\mathbb{E}[u(x,\cdot)]")
Similarly an approximation of the variance can be computed and interpolated.
square = PF -> ProductFun(PF*PF,d)
variance = ProductFun(integrate_on_sparsegrid(sg,[square(f_on_grid[i]-expectedvalue) for i in eachindex(f_on_grid)]),d)
plot(variance)
plot!(title="Approximation of Variance",
xlabel=L"x_1",
ylabel=L"x_2",
zlabel=L"Var[u(x,\cdot)]")
